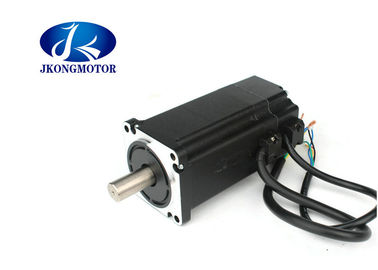

NEMA24 Hybrid 3 Phase Brushless Dc Motor 60mm 48V 94W For CNC Machine

NEMA24 Hybrid 3 Phase Brushless Dc Motor 60mm 48V 94W For CNC Machine

  • NEMA24 Hybrid 3 Phase Brushless Dc Motor 60mm 48V 94W  For CNC Machine
  • NEMA24 Hybrid 3 Phase Brushless Dc Motor 60mm 48V 94W  For CNC Machine
NEMA24 Hybrid 3 Phase Brushless Dc Motor 60mm 48V 94W  For CNC Machine
পণ্যের বিবরণ:
উৎপত্তি স্থল: জিয়াংসু, চীন (মেনল্যান্ড)
পরিচিতিমুলক নাম: Jkongmotor
সাক্ষ্যদান: CE, ROHS,ISO9001
মডেল নম্বার: JK60BLS01
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 3-10PCS
মূল্য: US $16-25.5 / Units | 3 Unit/Units (Min. Order)
প্যাকেজিং বিবরণ: রপ্তানি শক্ত কাগজ সঙ্গে। তৃণশয্যা সঙ্গে বড় পরিমাণে
ডেলিভারি সময়: নমুনার জন্য, 7-15 দিন / ব্যাচ জন্য, 15-25 দিন
পরিশোধের শর্ত: টি / টি, পেপাল, ওয়েস্টার্ন ইউনিয়ন, এল / সি
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
ফেজ: 3, 3-ফেজ درجه: অকুলীন
ধাপে কোণ (ডিগ্রী): 1.8 ডিগ্রী জিভ ধরে: 0.3NM
বর্তমান / ফেজ: 2.8A মোটর দৈর্ঘ্য: 78mm
বিভব সীমা: 48V উপযুক্ত মোটর: Nema 24 stepper মোটর
লক্ষণীয় করা:

bldc motor

,

micro brushless dc motor


60mm(NEMA24) 48V 94W 3 phase bldc motor with factory price for cnc machine


Product Description


Genaral Specification:



Item Specification
Winding type Star
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm@450g
End play 0.08mm@450g
Max.radial force 115N @20mm form the flange
Max.axial force 45N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩ Min.,500VDC





 Electrical Specification:



    Model
Specification Unit JK60BLS01 JK60BLS02 JK60BLS03 JK60BLS04
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 0.3 0.6 0.9 1.2
Rated Current Amps 2.8 5.2 7.5 9.5
Rated Power W 94 188 283 377
Peak Torque N.m 0.9 1.8 2.7 3.6
Peak Current Amps 8.4 15.6 22.5 28.5
Back E.M.F V/Krpm 12.1 12.6 12.4 13.3
Torque Constant N.m/A 0.116 0.12 0.118 0.127
Rotor Inertia Kg.cm^2 0.24 0.48 0.72 0.96
Body Length mm 78 99 120 141
Weight Kg 0.85 1.25 1.65 2.05
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25~+70℃
Operating Temperature -15~+50℃
Working Humidity 85% or under 85% RH(non condensing)
Working Environment outdoor(no direct sunlight),Non-corrosive Gas,
Non-inflammable gas, No oil fog, No dust
Altitude 1000m or under 1000m



Products of special request can be made according to the customer request !





Further More Information



Q1: What about your warranty?

A: We guarantee is one year . for sea order .  is 15months.



Q2: Do you have any certificates?

A: Yes, we have. All the motors have been approved by CE and Rohs.



Q3: Do you offer OEM AND ODM service?

A: Yes. We can  supply OEM andmake customized design for any specific application.



Q4: How can be your brand distributor?

A: We will check your capacity and help you promote and expand the market.



Q5: What's the delivery time  ?

A: Except special order. For samples usually  10-14 working days . for batch order . usually 20-25days.
